EXP2 Wk2 Parallel Projections

 The next task was to combine pairs of the 6 previous axonometrics into 3 combined 'monuments'. I wanted to combine them in more unique configurations, and in ways that considered their junction and the space they created together. To do so, I employed Sketchup to help me experiment with different combinations and see possibilities that in my head alone would be difficult to visualise.

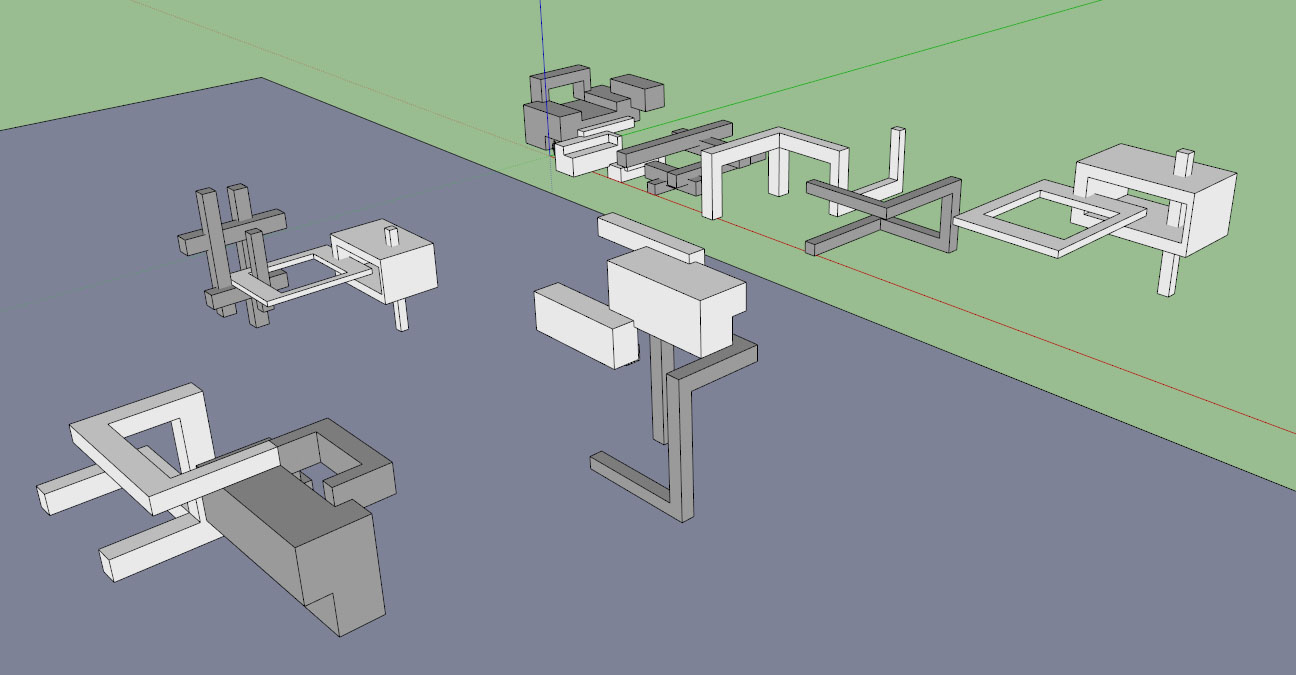

The 6 original models and the 3 final combinations.
Grey: Frei Otto, White: Elizabeth Diller

The process of drawing the monuments I undertook manually, without using the Sketchup model to draw the opposite view. I did however use Sketchup to decide on the first view, to gain the most informative angle (for both sides). Here are my final 3 monuments:

Frei Otto: Space Efficiency & Elizabeth Diller: Manipulation of Natural Elements

With this combination, I believe the two models compliment each other very well. The only parts touching the ground are the column on the right (in the top view) and the longest vertical beam ofthe cross-hatching model encompassing the horizontal plane. This two-point support column is inspired by real tree trunks, that support a  large weight and wide canopy. This links with Diller's concept, and the Otto model compliments it by creating a structure reminiscent of vines or tangled branches.

At the same time, Diller's model also works with Otto's model for space efficiency, as it is raised and both creates and shelters a space beneath it.

The union of the two manages a large ground space with a 'canopy' above. while still allowing for intimate spaces such as inside the 'tree', and in the surrounded path corner.

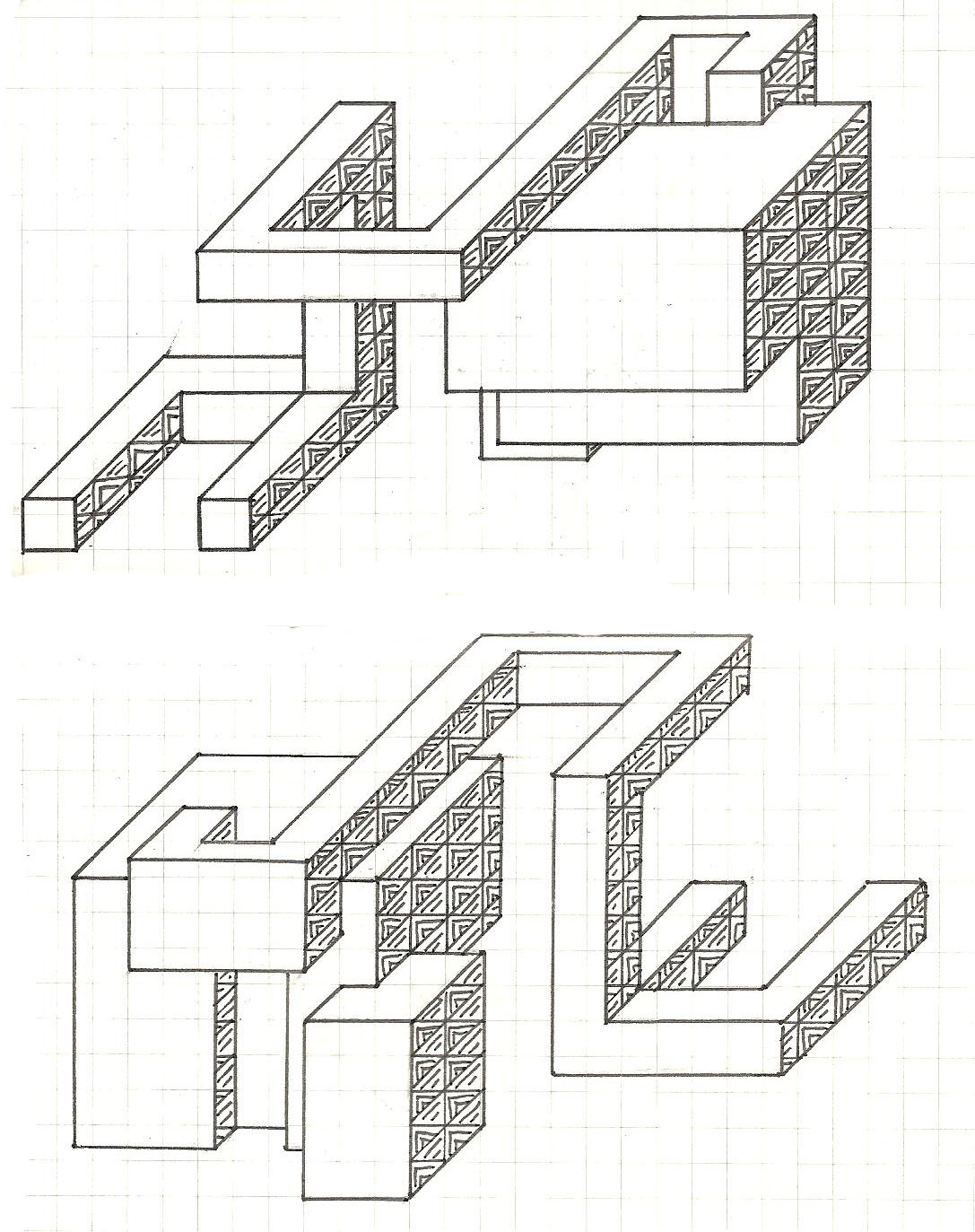

Frei Otto: Undulating Forms & Elizabeth Diller: Public Exterior

These two forms I made to be an extension of each other. I believe the Diller model still carries through a sense of undulation through its flow of shapes. The monument sits on the two horizontal 'legs' as well as the small block seen in the bottom view. Both shapes accommodate ground space (as with the previous monument) but there are more 'nooks' with this one. This plays on the "Public Exterior" idea, where the entire shape in itself is quite open, but in still maintains private spaces.

In my vision for this combination, the biggest block could suit an auditorium/theatre like set-up. The entire area is quite open, therefore most of the spaces would be outside. If I'm to further develop this monument, I will need to consider shelter options, as well as how to organise an open space around this central piece.

Frei Otto: Weightlessness & Elizabeth Diller: Free Flowing

[Please note the right drawing is taken from the angle indicated instead of from the opposing angle to allow for the viewing of the small rectangular prism. There is also one shape missing which can be seen in the sketchup model image above]

As with the first monument, the two concepts from my clients intertwine in this monument. The 'heavy' blocks from Diller's model are being supported by Otto's 'weightless' structure. giving the appearance of strength through minimal support- a trait very strong in most of Otto's work. The two aligning horizontal pieces from Otto's model (their tops are shaded in the right image) continue and extend the flowing shape of Diller's model. Overall both concepts are strengthened.

In terms of spaces created in their union, I have consciously created the covered space between the two models (the long 'corridor' with one side open). From this, a ground space was created beneath the monument, providing an area for architecture students from various schools to meet.
